Product Search - Spring Clips / 4572

Download Catalog for Spring Clips / 4572 Don't see what you need? REQUEST A QUOTE

Spring Clip With Tabs, Fuse Clip With Tabs, Component Clip With Tabs, Round Component Spring Clip With Tabs

This standard spring clip with multiple tabs is used to apply spring tension to hold round components, such as fuses or rods, in place in an assembly and the tabs work as a stop for the component to further hold it in place and one can be wired to ground the clip to the assembly.

Use our Quick Search below to source beryllium copper spring clips and spring steel spring clips from our wide selection of options.

Available Materials: Beryllium Copper, Spring Steel

Customary Finishes: Cadmium Type II (C2), Nickel (N), Silver (S), Bright Tin (T) (other finishes also available)

Not all available materials and finishes are listed in our catalog for every part number. If you require a different material, finish or size, please submit a quote.

If you need additional information on your particular spring clip with tabs application click on one of the links below:
     View our material & finish specification sheets
     View metallic material characteristic information
     View finish characteristic information

Look to Seastrom for your CNC Turning and Milling needs
Send us your requirements today!

All Available PartsOnly Parts in Stock

Click on the Column Name to re-sort data.

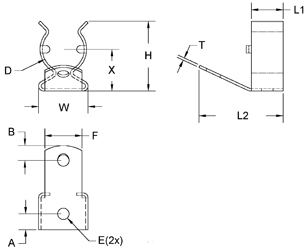

Dimensions in Inches

Product Number	D	L1	L2	T (Stk)	H (Max)	W (Base Max)	X	E	A	B	F	Material	Finish	Leadtime	Get Pricing
4572-74-127-1	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Beryllium Copper		3-4 Weeks	Price
4572-74-127-1-C2	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Beryllium Copper	Cadmium Type II	11-12 Weeks	Price
4572-74-127-1-N	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Beryllium Copper	Nickel	5-6 Weeks	Price
4572-74-127-1-S	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Beryllium Copper	Silver	5-6 Weeks	Price
4572-74-127-1-T	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Beryllium Copper	Bright Tin	Call for Delivery	Price
4572-74-127-2	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Spring Steel		Call for Delivery	Price
4572-74-127-2-C2	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Spring Steel	Cadmium Type II	Call for Delivery	Price
4572-74-127-2-N	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Spring Steel	Nickel	Call for Delivery	Price
4572-74-127-2-S	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Spring Steel	Silver	5-6 Weeks	Price
4572-74-127-2-T	0.740	0.625	1.275	0.032	1.270	0.830	0.750	0.188	0.312	0.197	0.605	Spring Steel	Bright Tin	5-6 Weeks	Price
4572-99-141-1	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Beryllium Copper		3-4 Weeks	Price
4572-99-141-1-C2	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Beryllium Copper	Cadmium Type II	11-12 Weeks	Price
4572-99-141-1-N	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Beryllium Copper	Nickel	5-6 Weeks	Price
4572-99-141-1-S	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Beryllium Copper	Silver	5-6 Weeks	Price
4572-99-141-1-T	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Beryllium Copper	Bright Tin	5-6 Weeks	Price
4572-99-141-2	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Spring Steel		3-4 Weeks	Price
4572-99-141-2-C2	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Spring Steel	Cadmium Type II	11-12 Weeks	Price
4572-99-141-2-N	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Spring Steel	Nickel	5-6 Weeks	Price
4572-99-141-2-S	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Spring Steel	Silver	5-6 Weeks	Price
4572-99-141-2-T	0.990	0.625	1.416	0.040	1.790	1.100	1.027	0.188	0.312	0.197	0.778	Spring Steel	Bright Tin	5-6 Weeks	Price
