Spring Clip, Fuse Clip, Component Clip, Odd Shaped Component Spring Clip

This standard style of spring clip is used to apply spring tension to hold odd shaped components in an assembly.

Use our Quick Search below to source beryllium copper spring clips and spring steel spring clips from our wide selection of options.

Available Materials: Beryllium Copper, Spring Steel

Customary Finishes: Cadmium Type II (C2), Nickel (N), Silver (S), Bright Tin (T) (other finishes also available)

Not all available materials and finishes are listed in our catalog for every part number. If you require a different material, finish or size, please submit a quote.

If you need additional information on your particular spring clip application click on one of the links below:
     View our material & finish specification sheets
     View metallic material characteristic information
     View finish characteristic information

Look to Seastrom for your CNC Turning and Milling needs
Send us your requirements today!

Quick Search

Material

Min D

Max D

Min L

Max L

All Available PartsOnly Parts in Stock

Click on the Column Name to re-sort data.

Dimensions in Inches

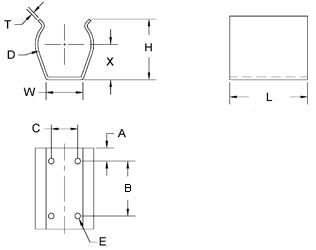

Product Number	D	L	T (Stk)	H (Max)	W (Base Max)	X	E	A	B	C	Material	Finish	Stock	Leadtime	Get Pricing
4555-95-150-1	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Beryllium Copper		0	3-4 Weeks	Price
4555-95-150-1-C2	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Beryllium Copper	Cadmium Type II	0	9-10 Weeks	Price
4555-95-150-1-N	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Beryllium Copper	Nickel	0	5-6 Weeks	Price
4555-95-150-1-S	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Beryllium Copper	Silver	0	5-6 Weeks	Price
4555-95-150-1-T	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Beryllium Copper	Bright Tin	0	5-6 Weeks	Price
4555-95-150-2	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Spring Steel		923	In Stock - Ready To Ship!	Price
4555-95-150-2-C2	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Spring Steel	Cadmium Type II	0	6-7 Weeks for <= 923 Call for Delivery for > 923	Price
4555-95-150-2-N	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Spring Steel	Nickel	1	In Stock - Ready To Ship!	Price
4555-95-150-2-S	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Spring Steel	Silver	0	5-6 Weeks	Price
4555-95-150-2-T	0.950	1.500	0.016	0.950	0.640	0.515	0.073	0.250	1	0.400	Spring Steel	Bright Tin	0	5-6 Weeks	Price
