Product Search - Spring Clips / 4519

Download Catalog for Spring Clips / 4519

Spring Clip, Fuse Clip, Component Clip, Odd Shaped Component Spring Clip

This standard style of spring clip is used to apply spring tension to hold odd shaped components in an assembly.

Use our Quick Search below to source beryllium copper spring clips and spring steel spring clips from our wide selection of options.

Available Materials: Beryllium copper spring clips, spring steel spring clips

Available Finishes: Cadmium plated spring clip, nickel plated spring clip, silver plated spring clip, tin plated spring clips (other finishes also available)

If you need additional information on your particular spring clip application click on one of the links below:
     View our material & finish specification sheets
     View metallic material characteristic information
     View finish characteristic information

Did you know Seastrom is more than spring clips? We manufacture and stock over 44,000 part numbers to make your washer & fastener sourcing job easy.

Quick Search

Material

Min D

Max D

Min L

Max L

All Available PartsOnly Parts in Stock

Don't see what you need?

Click here to revise your search

Click here to request a custom quote

Click on the Column Name to re-sort data.

Dimensions in Inches

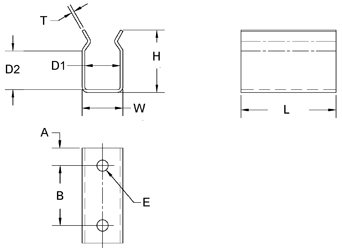

Product Number	D1	D2 (REF)	L	T (Stk)	H (Max)	W (Max)	B	E	A	Material	Finish	Stock	Leadtime	Get Pricing
4519-28X35-37-1	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Beryllium Copper		0	5-6 Weeks	Price
4519-28X35-37-1-C2	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Beryllium Copper	Cadmium Type II	0	11-12 Weeks	Price
4519-28X35-37-1-N	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Beryllium Copper	Nickel	0	5-6 Weeks	Price
4519-28X35-37-1-S	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Beryllium Copper	Silver	0	5-6 Weeks	Price
4519-28X35-37-1-T	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Beryllium Copper	Bright Tin	0	5-6 Weeks	Price
4519-28X35-37-2	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Spring Steel		8035	In Stock - Ready To Ship!	Price
4519-28X35-37-2-C2	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Spring Steel	Cadmium Type II	0	5-6 Weeks for <= 8035 11-12 Weeks for > 8035	Price
4519-28X35-37-2-N	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Spring Steel	Nickel	4	In Stock - Ready To Ship!	Price
4519-28X35-37-2-S	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Spring Steel	Silver	0	5-6 Weeks	Price
4519-28X35-37-2-T	0.280	0.350	0.375	0.012	0.470	0.310	0	0.154	0.187	Spring Steel	Bright Tin	0	5-6 Weeks	Price
4519-29X43-75-1	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Beryllium Copper		2561	In Stock - Ready To Ship!	Price
4519-29X43-75-1-C2	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Beryllium Copper	Cadmium Type II	0	5-6 Weeks for <= 2561 11-12 Weeks for > 2561	Price
4519-29X43-75-1-N	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Beryllium Copper	Nickel	0	5-6 Weeks	Price
4519-29X43-75-1-S	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Beryllium Copper	Silver	0	5-6 Weeks	Price
4519-29X43-75-1-T	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Beryllium Copper	Bright Tin	0	5-6 Weeks	Price
4519-29X43-75-2	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel		0	3-4 Weeks	Price
4519-29X43-75-2-C2	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel	Cadmium Type II	0	11-12 Weeks	Price
4519-29X43-75-2-CH	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel	Chrome	44	In Stock - Ready To Ship!	Price
4519-29X43-75-2-N	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel	Nickel	0	9-10 Weeks	Price
4519-29X43-75-2-S	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel	Silver	0	5-6 Weeks	Price
4519-29X43-75-2-T	0.290	0.437	0.750	0.010	0.605	0.344	0.437	0.098	0.156	Spring Steel	Bright Tin	0	5-6 Weeks	Price
4519-33X35-37-1	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Beryllium Copper		0	3-4 Weeks	Price
4519-33X35-37-1-C2	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Beryllium Copper	Cadmium Type II	0	11-12 Weeks	Price
4519-33X35-37-1-N	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Beryllium Copper	Nickel	0	5-6 Weeks	Price
4519-33X35-37-1-S	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Beryllium Copper	Silver	0	5-6 Weeks	Price
4519-33X35-37-1-T	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Beryllium Copper	Bright Tin	0	5-6 Weeks	Price
4519-33X35-37-2	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Spring Steel		811	In Stock - Ready To Ship!	Price
4519-33X35-37-2-C2	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Spring Steel	Cadmium Type II	0	5-6 Weeks for <= 811 Call for Delivery for > 811	Price
4519-33X35-37-2-N	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Spring Steel	Nickel	0	5-6 Weeks for <= 811 Call for Delivery for > 811	Price
4519-33X35-37-2-S	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Spring Steel	Silver	0	5-6 Weeks	Price
4519-33X35-37-2-T	0.335	0.350	0.375	0.012	0.470	0.370	0	0.154	0.187	Spring Steel	Bright Tin	0	5-6 Weeks	Price
4519-84X140-25-1	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Beryllium Copper		0	3-4 Weeks	Price
4519-84X140-25-1-C	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Beryllium Copper	Cadmium Type II	0	7-8 Weeks	Price
4519-84X140-25-1-N	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Beryllium Copper	Nickel	0	5-6 Weeks	Price
4519-84X140-25-1-S	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Beryllium Copper	Silver	0	5-6 Weeks	Price
4519-84X140-25-1-T	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Beryllium Copper	Bright Tin	0	5-6 Weeks	Price
4519-84X140-25-2	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Spring Steel		0	3-4 Weeks	Price
4519-84X140-25-2-C	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Spring Steel	Cadmium Type II	0	7-8 Weeks	Price
4519-84X140-25-2-N	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Spring Steel	Nickel	0	5-6 Weeks	Price
4519-84X140-25-2-S	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Spring Steel	Silver	0	5-6 Weeks	Price
4519-84X140-25-2-T	0.840	1.406	0.250	0.036	2	0.840	0	0.128	0.125	Spring Steel	Bright Tin	0	5-6 Weeks	Price
