Product Search - Solder Lugs / 5414

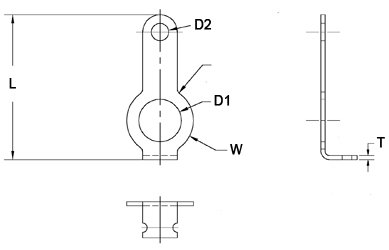

images/5414_engr.jpg View engineering specs
Download Catalog for Solder Lugs / 5414 Don't see what you need? REQUEST A QUOTE
Solder Lug

  • Provides excellent electrical connection by soldering a wire to the lug.
  • Some styles are designed for the lug to also be soldered to the connecting surface.
  • Can solder several wires to one lug.

  • Material: Brass
  • Customary Finishes: Bright Tin (T) (other finishes also available)

    • Not all available materials or finishes are listed in our catalog for every part number. If you require a different material, finish or size, please submit a quote.

    If you need additional information on your particular solder lug application click on one of the links below:
         View our material & finish specification sheets
         View metallic material characteristic information
         View finish characteristic information

    Did you know?Seastrom has extensive custom capabilities in Precision Stamping, CNC Machining, Multi-Spindle Screw Machining, Four-Slide, Water Jet & Laser Part Marking to meet all your requirements. Products can be manufactured in most metallic and non-metallic materials, even hard to find materials. Ask us today!

    Quick Search

    Material
    Min D1
    Max D1
    Min L
    Max L
    Don't see what you need?
    search icon Click here to revise your search
    search icon Click here to request a custom quote
    Click on the Column Name to re-sort data.
    Dimensions in Inches
    Product NumberLWA (Formed Angle °)D1D2TScrew SizeFinishMaterialStockLeadtimeGet Pricing
    54140.5730.250900.1160.0790.0254Bright TinBrass08-9 WeeksPrice
